2018年2月2日 星期五

Fujitsu LifeBook S2210 windows xp 驅動程式下載/鍵盤錯亂問題

Fujitsu LifeBook S2210, 2007 的產品

手邊這台 notebook 是 Fujitsu LifeBook S2210, 2007 的機器, 距離現在的 20180125 已經有 10 年了, 仍然是我主力在使用的電腦, 因為它一直不壞, 我也沒機會買其他機器, made in japan 果然威。

而我也還在使用 windows xp, 其 windows xp driver 我放在 https://drive.google.com/open?id=1J_lCnX2Cn_lr47snnLNqNSGLMdUA2DRB

官方網站提供的 windows xp driver:
LIFEBOOK S2210 Notebook PC windows xp driver

Fujitsu LifeBook S2210 Specifications

Fujitsu LifeBook S2210



Fujitsu LifeBook S2210 (Turion 64 X2 1.6GHz, 512MB RAM, 40GB HDD, Vista Home Basic)

Part Number: FPCM43044  Released: March 6, 2007

GENERAL

  • Packaged Quantity
    1
  • Embedded Security
    Trusted Platform Module (TPM 1.2) Security Chip
  • Notebook type
    Ultraportable (Under 4 lbs.)
  • Manufacturer
    Fujitsu

PROCESSOR / CHIPSET

  • CPU
    AMD Turion 64 X2 mobile technology TL-52 / 1.6 GHz
  • Number of Cores
    Dual-Core
  • Cache
    L2 - 1 MB
  • 64-bit Computing
    Yes

CACHE MEMORY

  • Type
    L2 cache
  • Installed Size
    1 MB

MEMORY

  • Max Supported Size
    4 GB
  • Technology
    DDR2 SDRAM
  • Speed
    667 MHz / PC2-5300 - 667 MHz
  • Slots Qty
    2
  • Empty Slots
    1

STORAGE

  • Interface
    Serial ATA-150
  • Optical Drive
    CD-RW / DVD-ROM combo removable
  • Type
    none
  • Type
    portable

RAM

  • Memory Speed
    667 MHz
  • Memory Specification Compliance
    PC2-5300
  • Configuration Features
    1 x 512 MB
  • Technology
    DDR2 SDRAM
  • Installed Size
    512 MB
  • Rated Memory Speed
    667 MHz

ENVIRONMENTAL PARAMETERS

  • Environmental standards
    EPA Energy Star
  • Humidity Range Operating
    20 - 85%

DISPLAY

  • Resolution
    1024 x 768 (XGA)
  • Widescreen Display
    No
  • Color Support
    24-bit (16.7 million colors)
  • Monitor Features
    Crystal View
  • Diagonal Size (metric)
    33.8 cm
  • Display Resolution Abbreviation
    XGA

AUDIO & VIDEO

  • Graphics Processor
    ATI Radeon Xpress 1150
  • Memory Allocation Technology
    shared video memory (UMA)
  • Sound
    Microphone
  • Audio Codec
    Realtek ALC262

HARD DRIVE

  • Spindle Speed
    5400 rpm
  • Type
    HDD
  • Capacity
    40 GB

INPUT

  • Type
    keyboard, scroll button, touchpad
  • Localization & Layout
    US

COMMUNICATIONS

  • Wireless Protocol
    802.11 Super AG, 802.11a/b/g
  • Wired Protocol
    Gigabit Ethernet

OPTICAL STORAGE

  • Drive Type
    CD-RW / DVD
  • Type
    CD-RW / DVD-ROM combo
  • Form Factor
    removable

PROCESSOR

  • CPU Type
    Turion 64 X2 mobile technology
  • Processor Number
    TL-52
  • Manufacturer
    AMD
  • Clock Speed
    1.6 GHz

FLOPPY DRIVE

  • Type
    none

CARD READER

  • Type
    card reader
  • Supported Flash Memory
    Memory Stick, Memory Stick PRO, SD Memory Card

BATTERY

  • Capacity
    5200 mAh
  • Cells
    6-cell
  • Technology
    lithium ion
  • Run Time (Up To)
    2.5 sec

AC ADAPTER

  • Input
    AC 120/230 V

CONNECTIONS & EXPANSION

  • Slots
    2 x memory (1 free)
    1 x CardBus (1 free)
  • Interfaces
    3 x USB 2.0 4 pin USB Type A
    1 x display / video - S-video output
    1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
    1 x modem - phone line - RJ-11
    1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
    1 x IEEE 1394 (FireWire) 4 pin FireWire
    1 x audio - line-in/microphone - mini-phone 3.5 mm
    1 x audio - line-out/headphones - mini-phone stereo 3.5 mm
  • Memory Card Reader
    Yes (SD Card, Memory Stick, Memory Stick PRO)

HEADER

  • Brand
    Fujitsu
  • Product Line
    Fujitsu LIFEBOOK
  • Model
    S2210
  • Packaged Quantity
    1
  • Compatibility
    PC

MISCELLANEOUS

  • Security
    Trusted Platform Module (TPM 1.2) Security Chip
  • Features
    administrator password, hard drive password, security lock slot (cable lock sold separately), system password
  • Compliant Standards
    FCC Part 15 B, FCC Part 15 C, FCC Part 68, IC CS-03, ICES-003 Class B, RSS-210, UL, cUL

NETWORKING

  • Max Transfer Rate
    56 Kbps
  • Data Link Protocol
    802.11 Super AG, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g
  • Compliant Standards
    IrDA 1.1, Wi-Fi CERTIFIED
  • Wireless LAN Supported
    Yes

SYSTEM

  • Notebook Type
    notebook
  • Platform
    Windows
  • Hard Drive Capacity
    40 GB
  • Embedded Security
    Trusted Platform Module (TPM 1.2) Security Chip

MONITOR

  • Diagonal Size
    13.3 in
  • Color Support
    24-bit (16.7 million colors)

DIMENSIONS & WEIGHT

  • Width
    11.5 in
  • Depth
    9.4 in
  • Height
    1.3 in

MANUFACTURER WARRANTY

  • Type
    3 years warranty

ENVIRONMENTAL STANDARDS

  • ENERGY STAR Certified
    Yes

PHYSICAL CHARACTERISTICS

  • Weight
    3.53 lbs

POWER

  • Min Operating Temperature
    41 °F
  • Max Operating Temperature
    95 °F

OPERATING SYSTEM / SOFTWARE

  • OS Provided: Type
    Microsoft Windows Vista
  • Type
    Adobe Reader, Cyberlink PowerDVD, Microsoft Works 8.5, Norton Internet Security 2007 (90 days subscription), Roxio Easy Media Creator, Drivers & Utilities, EverNote Plus 1.1, Fujitsu Driver Update Utility, Fujitsu HotKey Utility, Fujitsu Security Application Panel, Fujitsu Shock Sensor Utility, Journal Viewer, Microsoft Internet Explorer

VIDEO OUTPUT

  • Graphics Processor
    ATI Radeon Xpress 1150
  • Graphics Processor Series
    ATI Radeon

VIDEO MEMORY

  • Memory Allocation Technology
    shared video memory (UMA)

SERVICE & SUPPORT

  • Type
    3 years warranty

SERVICE & SUPPORT DETAILS

  • Type
    limited warranty
  • Full Contract Period
    3 years

GENERAL

  • Manufacturer
    Fujitsu



[notebook 鍵盤按鍵突然錯亂]

http://newforum.17inda.com/home.php?mod=space&uid=146&do=blog&id=5
鍵盤輸入錯誤
答:

您是用筆記型的電腦嗎?

如果鍵盤輸入有錯亂的問題,那是因為筆電鍵盤有特殊的切換方式,這在各個筆電說明書都有寫

1.如果是IBM的notebook:

拔掉USB鍵盤後,按Shift與NumLock就可以切換回正常

2.如果是富士通的notebook:

按NumLock與其他任意鍵就可以

3.如果是ASUS的notebook:

按NumLock與FN再加其他任意鍵後就正常了

不在上述的筆電,請見原說明書

[20171218 更換 Fujitsu F500 128GB 2.5吋 ssd sata3]

由於硬碟是 sata 1 代的版本, 我很擔心無法換上 sata 3 的 ssd, 目前找得到的都是 sata 3, 我也找不到 sata 1 的 ssd。

最後在 pchome 線上購物購買了 Fujitsu F500 128GB 2.5吋 SATAIII SSD固態硬碟, 20171214 收到, 1199nt, 當白老鼠試試。



拆開筆電的硬碟, 換上 ssd。

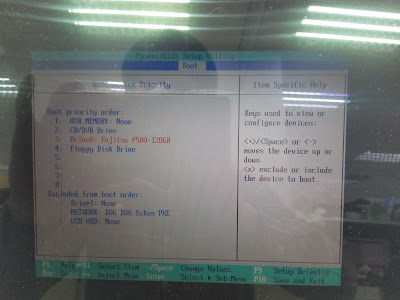

安裝 gnu linux/debian, bios 和 linux 都抓得到這顆 ssd。



安裝 debian 後, 重新開機, 速度飛快, 大概 10 秒就可以開到 X 登錄畫面, 老筆電重生, 看能不能再戰十年。
